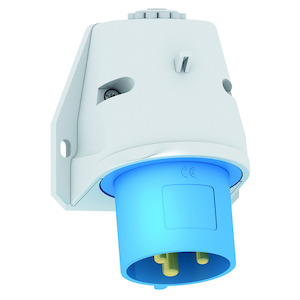

overige CEE STOPKONTAKT 32A 3P MAN. 23
voorraad Vladslovoorraad Brugge:
ref: 56600
BALS 24402 EAN 4024941244022
current 32A
number of poles 3p
number of poles 2P+PE
position of earth contact 6 h
voltage 200-250V
frequency 50 and 60Hz
protection degree IP44
colour code blue RAL 5015
Colour of appliance Collar blue
Housing top/bottom grey
connection design screwless spring-clamp technology as cage clamp
maximum conductor size 6,0 qmm
cable entry top entry M25
HWD 133x94x87mm
dimension of enclosure 92x94 mm (HxW)
material of enclosure Polyamide
contact The contact carrier is made of polyamide
The contacts are brass
current 32A
number of poles 3p
number of poles 2P+PE
position of earth contact 6 h
voltage 200-250V
frequency 50 and 60Hz
protection degree IP44
colour code blue RAL 5015
Colour of appliance Collar blue
Housing top/bottom grey
connection design screwless spring-clamp technology as cage clamp
maximum conductor size 6,0 qmm
cable entry top entry M25
HWD 133x94x87mm
dimension of enclosure 92x94 mm (HxW)
material of enclosure Polyamide
contact The contact carrier is made of polyamide
The contacts are brass
€ 23.32 incl BTW
